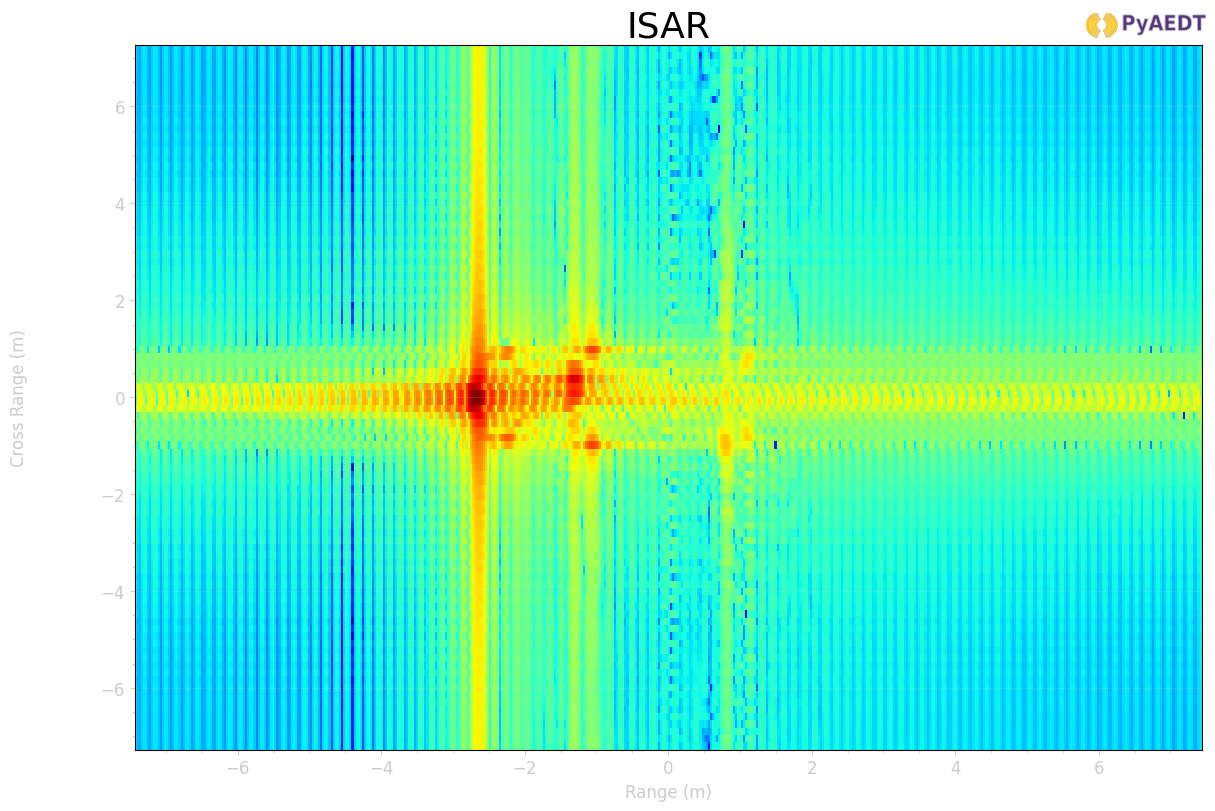

Import CAD and create ISAR 2D setup#

This example demonstrates how to use the ToolkitBackend class. It initiates AEDT through PyAEDT, opens an SBR+ design, creates the setup, and analyzes it.

Perform required imports#

[1]:

from pathlib import Path
import shutil
import sys
import tempfile
import time

[2]:

from ansys.aedt.toolkits.radar_explorer.backend.api import ToolkitBackend
from ansys.aedt.toolkits.radar_explorer.rcs_visualization import MonostaticRCSData
from ansys.aedt.toolkits.radar_explorer.rcs_visualization import MonostaticRCSPlotter

Set AEDT version#

[3]:

aedt_version = "2026.1"

Set non-graphical mode#

[4]:

non_graphical = True

Set number of cores#

[5]:

cores = 4

Create temporary directory#

[6]:

temp_dir = tempfile.TemporaryDirectory(suffix="_ansys")

Get example project#

[7]:

car_original = r"example_models\geometries\car_stl.stl"
car = Path(temp_dir.name) / "car.stl"
shutil.copy(car_original, car)

[7]:

WindowsPath('C:/Users/ansys/AppData/Local/Temp/tmptqcrcukh_ansys/car.stl')

Initialize toolkit#

[8]:

toolkit_api = ToolkitBackend()

Get toolkit properties#

[9]:

properties_from_backend = toolkit_api.get_properties()

Set properties#

Set non-graphical mode.

[10]:

set_properties = {"non_graphical": non_graphical, "aedt_version": aedt_version}
flag_set_properties, msg_set_properties = toolkit_api.set_properties(set_properties)

INFO - Updating internal properties.

Initialize AEDT#

Launch a new AEDT session in a thread.

[11]:

thread_msg = toolkit_api.launch_thread(toolkit_api.launch_aedt)

PyAEDT INFO: Python version 3.12.10 (tags/v3.12.10:0cc8128, Apr  8 2025, 12:21:36) [MSC v.1943 64 bit (AMD64)].
PyAEDT INFO: PyAEDT version 0.26.1.
PyAEDT INFO: Initializing new Desktop session.

Wait for the toolkit thread to be idle#

Wait for the toolkit thread to be idle and ready to accept a new task.

[12]:

idle = toolkit_api.wait_to_be_idle()
if not idle:
    print("AEDT not initialized.")
    sys.exit()

PyAEDT INFO: New AEDT session is starting on gRPC port 57597.
PyAEDT INFO: Starting new AEDT gRPC session on port 57597.
PyAEDT INFO: Launching AEDT server with gRPC transport mode: TransportMode.WNUA
PyAEDT INFO: Electronics Desktop started on gRPC port 57597 after 9.1 seconds.
PyAEDT INFO: AEDT installation Path C:\Program Files\ANSYS Inc\v261\AnsysEM
PyAEDT INFO: Connected to AEDT gRPC session on port 57597.
PyAEDT INFO: Desktop has been released.

INFO - AEDT is released.

Connect design#

Connect an existing design or create a new design.

[13]:

toolkit_api.connect_design("HFSS")

PyAEDT INFO: Python version 3.12.10 (tags/v3.12.10:0cc8128, Apr  8 2025, 12:21:36) [MSC v.1943 64 bit (AMD64)].
PyAEDT INFO: PyAEDT version 0.26.1.
PyAEDT INFO: Initializing Desktop session.
PyAEDT INFO: AEDT version 2026.1.
PyAEDT INFO: AEDT installation Path C:\Program Files\ANSYS Inc\v261\AnsysEM
PyAEDT INFO: Connected to AEDT gRPC session on port 57597.
PyAEDT INFO: Python version 3.12.10 (tags/v3.12.10:0cc8128, Apr  8 2025, 12:21:36) [MSC v.1943 64 bit (AMD64)].
PyAEDT INFO: PyAEDT version 0.26.1.
PyAEDT INFO: Returning found Desktop session with PID 5720!
PyAEDT INFO: Project Project2 has been created.
PyAEDT INFO: Added design 'HFSS_M0ESQC' of type HFSS.
PyAEDT INFO: AEDT objects correctly read
PyAEDT INFO: Project Project2 Saved correctly
PyAEDT INFO: Active Design set to HFSS_M0ESQC

INFO - Updating internal properties.
INFO - Toolkit is connected to AEDT design.

[13]:

True

Import CAD#

[14]:

toolkit_api.properties.cad.input_file = [car]
toolkit_api.properties.cad.material = ["pec"]
toolkit_api.properties.cad.position = [[0.0, 0.0, 0.0]]

Set calculation type#

[15]:

new_properties = {"calculation_type": "2D ISAR"}

[16]:

flag3, msg3 = toolkit_api.set_properties(new_properties)

INFO - Updating internal properties.

[17]:

new_properties = {"ray_density": 0.1, "ffl": True, "num_cores": cores}
flag4, msg4 = toolkit_api.set_properties(new_properties)

INFO - Updating internal properties.

Set ISAR 2D properties#

[18]:

new_properties = {
    "range_max_az": 14.3,
    "range_res_az": 0.15,
    "range_max": 15.0,
    "range_res": 0.15,
    "sim_freq_lower": 9.5e9,
    "sim_freq_upper": 10.5e9,
}
flag5, msg5 = toolkit_api.set_properties(new_properties)

INFO - Updating internal properties.

[19]:

properties1 = toolkit_api.get_properties()

C:\actions-runner\_work\ansys-aedt-toolkits-radar-explorer\ansys-aedt-toolkits-radar-explorer\.venv\Lib\site-packages\pydantic\main.py:464: UserWarning: Pydantic serializer warnings:
  PydanticSerializationUnexpectedValue(Expected `str` - serialized value may not be as expected [field_name='input_file', input_value=WindowsPath('C:/Users/ans...tqcrcukh_ansys/car.stl'), input_type=WindowsPath])
  return self.__pydantic_serializer__.to_python(

[20]:

toolkit_api.update_isar_2d_properties(range_is_system=False, azimuth_is_system=False)

Check how aspect_ang_phi and num_phi has changed.

[21]:

properties2 = toolkit_api.get_properties()

Connect design and load project information#

[22]:

toolkit_api.launch_aedt()

[22]:

True

Insert CAD#

[23]:

toolkit_api.insert_cad_sbr()

PyAEDT INFO: Desktop has been released.

INFO - AEDT is released.

PyAEDT INFO: Python version 3.12.10 (tags/v3.12.10:0cc8128, Apr  8 2025, 12:21:36) [MSC v.1943 64 bit (AMD64)].
PyAEDT INFO: PyAEDT version 0.26.1.
PyAEDT INFO: Initializing Desktop session.
PyAEDT INFO: AEDT version 2026.1.
PyAEDT INFO: AEDT installation Path C:\Program Files\ANSYS Inc\v261\AnsysEM
PyAEDT INFO: Connected to AEDT gRPC session on port 57597.
PyAEDT INFO: Python version 3.12.10 (tags/v3.12.10:0cc8128, Apr  8 2025, 12:21:36) [MSC v.1943 64 bit (AMD64)].
PyAEDT INFO: PyAEDT version 0.26.1.
PyAEDT INFO: Returning found Desktop session with PID 5720!
PyAEDT INFO: Project Project2 set to active.
PyAEDT INFO: Active Design set to HFSS_M0ESQC
PyAEDT INFO: AEDT objects correctly read

INFO - Toolkit is connected to AEDT design.

PyAEDT INFO: Modeler class has been initialized! Elapsed time: 0m 0sec
PyAEDT INFO: Python version 3.12.10 (tags/v3.12.10:0cc8128, Apr  8 2025, 12:21:36) [MSC v.1943 64 bit (AMD64)].
PyAEDT INFO: PyAEDT version 0.26.1.
PyAEDT INFO: Returning found Desktop session with PID 5720!
PyAEDT INFO: Project Project2 set to active.
PyAEDT INFO: Added design 'HFSS_M0ESQC_7BHLRD' of type HFSS.
PyAEDT INFO: AEDT objects correctly read
PyAEDT INFO: Modeler class has been initialized! Elapsed time: 0m 0sec
PyAEDT INFO: Active Design set to HFSS_M0ESQC_7BHLRD
PyAEDT INFO: Active Design set to HFSS_M0ESQC_7BHLRD

INFO - Updating internal properties.
INFO - SBR design inserted: HFSS_M0ESQC_7BHLRD.

PyAEDT INFO: Step file C:\Users\ansys\AppData\Local\Temp\tmptqcrcukh_ansys\car.stl imported
PyAEDT INFO: Boundary Perfect E PerfE_7QH7PL has been created.
PyAEDT INFO: Mesh class has been initialized! Elapsed time: 0m 0sec
PyAEDT INFO: Mesh class has been initialized! Elapsed time: 0m 0sec
PyAEDT INFO: Parsing C:\Users\ansys\AppData\Local\Temp\pytest-of-ansys\pytest-3148\Project2.aedt.
PyAEDT INFO: File C:\Users\ansys\AppData\Local\Temp\pytest-of-ansys\pytest-3148\Project2.aedt correctly loaded. Elapsed time: 0m 0sec
PyAEDT INFO: aedt file load time 0.019225597381591797

INFO - 3D Component inserted.

PyAEDT INFO: Active Design set to HFSS_M0ESQC_7BHLRD
PyAEDT INFO: Active Design set to HFSS_M0ESQC_7BHLRD

INFO - Updating internal properties.

PyAEDT INFO: Desktop has been released.

INFO - AEDT is released.

[23]:

'HFSS_M0ESQC_7BHLRD'

Assign excitation#

[24]:

v_plane_wave = toolkit_api.add_plane_wave(name="IncWaveVpol", polarization="Vertical")

PyAEDT INFO: Python version 3.12.10 (tags/v3.12.10:0cc8128, Apr  8 2025, 12:21:36) [MSC v.1943 64 bit (AMD64)].
PyAEDT INFO: PyAEDT version 0.26.1.
PyAEDT INFO: Initializing Desktop session.
PyAEDT INFO: AEDT version 2026.1.
PyAEDT INFO: AEDT installation Path C:\Program Files\ANSYS Inc\v261\AnsysEM
PyAEDT INFO: Connected to AEDT gRPC session on port 57597.
PyAEDT INFO: Python version 3.12.10 (tags/v3.12.10:0cc8128, Apr  8 2025, 12:21:36) [MSC v.1943 64 bit (AMD64)].
PyAEDT INFO: PyAEDT version 0.26.1.
PyAEDT INFO: Returning found Desktop session with PID 5720!
PyAEDT INFO: Project Project2 set to active.
PyAEDT INFO: Active Design set to HFSS_M0ESQC_7BHLRD
PyAEDT INFO: AEDT objects correctly read

INFO - Toolkit is connected to AEDT design.

PyAEDT INFO: Modeler class has been initialized! Elapsed time: 0m 0sec
PyAEDT INFO: Boundary Plane Incident Wave IncWaveVpol has been created.

INFO - Plane wave IncWaveVpol created.

PyAEDT INFO: Desktop has been released.

INFO - AEDT is released.

Create setup#

[25]:

setup_name = toolkit_api.add_setup()

PyAEDT INFO: Python version 3.12.10 (tags/v3.12.10:0cc8128, Apr  8 2025, 12:21:36) [MSC v.1943 64 bit (AMD64)].
PyAEDT INFO: PyAEDT version 0.26.1.
PyAEDT INFO: Initializing Desktop session.
PyAEDT INFO: AEDT version 2026.1.
PyAEDT INFO: AEDT installation Path C:\Program Files\ANSYS Inc\v261\AnsysEM
PyAEDT INFO: Connected to AEDT gRPC session on port 57597.
PyAEDT INFO: Python version 3.12.10 (tags/v3.12.10:0cc8128, Apr  8 2025, 12:21:36) [MSC v.1943 64 bit (AMD64)].
PyAEDT INFO: PyAEDT version 0.26.1.
PyAEDT INFO: Returning found Desktop session with PID 5720!
PyAEDT INFO: Project Project2 set to active.
PyAEDT INFO: Active Design set to HFSS_M0ESQC_7BHLRD
PyAEDT INFO: AEDT objects correctly read

INFO - Toolkit is connected to AEDT design.

PyAEDT WARNING: Field Observation Domain not defined
PyAEDT INFO: Modeler class has been initialized! Elapsed time: 0m 0sec
PyAEDT INFO: Parsing C:\Users\ansys\AppData\Local\Temp\pytest-of-ansys\pytest-3148\Project2.aedt.
PyAEDT INFO: File C:\Users\ansys\AppData\Local\Temp\pytest-of-ansys\pytest-3148\Project2.aedt correctly loaded. Elapsed time: 0m 0sec
PyAEDT INFO: aedt file load time 0.042733192443847656

INFO - Setup rcs_setup created.

PyAEDT INFO: Desktop has been released.

INFO - AEDT is released.

Get toolkit properties#

[26]:

properties = toolkit_api.get_properties()

Analyze#

[27]:

toolkit_api.analyze()
toolkit_api.save_project()

PyAEDT INFO: Python version 3.12.10 (tags/v3.12.10:0cc8128, Apr  8 2025, 12:21:36) [MSC v.1943 64 bit (AMD64)].
PyAEDT INFO: PyAEDT version 0.26.1.
PyAEDT INFO: Initializing Desktop session.
PyAEDT INFO: AEDT version 2026.1.
PyAEDT INFO: AEDT installation Path C:\Program Files\ANSYS Inc\v261\AnsysEM
PyAEDT INFO: Connected to AEDT gRPC session on port 57597.
PyAEDT INFO: Python version 3.12.10 (tags/v3.12.10:0cc8128, Apr  8 2025, 12:21:36) [MSC v.1943 64 bit (AMD64)].
PyAEDT INFO: PyAEDT version 0.26.1.
PyAEDT INFO: Returning found Desktop session with PID 5720!
PyAEDT INFO: Project Project2 set to active.
PyAEDT INFO: Active Design set to HFSS_M0ESQC_7BHLRD
PyAEDT INFO: AEDT objects correctly read

INFO - Toolkit is connected to AEDT design.

PyAEDT INFO: Project Project2 Saved correctly
PyAEDT INFO: Project Project2 Saved correctly
PyAEDT INFO: Key Desktop/ActiveDSOConfigurations/HFSS correctly changed.
PyAEDT INFO: Solving all design setups. Analysis started...
PyAEDT INFO: Key Desktop/ActiveDSOConfigurations/HFSS correctly changed.
PyAEDT INFO: Desktop has been released.

INFO - AEDT is released.

PyAEDT INFO: Python version 3.12.10 (tags/v3.12.10:0cc8128, Apr  8 2025, 12:21:36) [MSC v.1943 64 bit (AMD64)].
PyAEDT INFO: PyAEDT version 0.26.1.
PyAEDT INFO: Initializing Desktop session.
PyAEDT INFO: AEDT version 2026.1.
PyAEDT INFO: AEDT installation Path C:\Program Files\ANSYS Inc\v261\AnsysEM
PyAEDT INFO: Connected to AEDT gRPC session on port 57597.
PyAEDT INFO: Active Design set to HFSS_M0ESQC_7BHLRD
PyAEDT INFO: Active Design set to HFSS_M0ESQC_7BHLRD

INFO - Updating internal properties.

PyAEDT INFO: Desktop has been released.

INFO - AEDT is released.

[27]:

True

Get RCS data#

[28]:

rcs_metadata_vv = toolkit_api.export_rcs(v_plane_wave, "ComplexMonostaticRCSTheta", encode=False)

PyAEDT INFO: Python version 3.12.10 (tags/v3.12.10:0cc8128, Apr  8 2025, 12:21:36) [MSC v.1943 64 bit (AMD64)].
PyAEDT INFO: PyAEDT version 0.26.1.
PyAEDT INFO: Initializing Desktop session.
PyAEDT INFO: AEDT version 2026.1.
PyAEDT INFO: AEDT installation Path C:\Program Files\ANSYS Inc\v261\AnsysEM
PyAEDT INFO: Connected to AEDT gRPC session on port 57597.
PyAEDT INFO: Python version 3.12.10 (tags/v3.12.10:0cc8128, Apr  8 2025, 12:21:36) [MSC v.1943 64 bit (AMD64)].
PyAEDT INFO: PyAEDT version 0.26.1.
PyAEDT INFO: Returning found Desktop session with PID 5720!
PyAEDT INFO: Project Project2 set to active.
PyAEDT INFO: Active Design set to HFSS_M0ESQC_7BHLRD
PyAEDT INFO: AEDT objects correctly read

INFO - Toolkit is connected to AEDT design.
INFO - Exporting RCS data for setup and sweep: rcs_setup : Sweep.

PyAEDT INFO: Parsing C:\Users\ansys\AppData\Local\Temp\pytest-of-ansys\pytest-3148\Project2.aedt.
PyAEDT INFO: File C:\Users\ansys\AppData\Local\Temp\pytest-of-ansys\pytest-3148\Project2.aedt correctly loaded. Elapsed time: 0m 0sec
PyAEDT INFO: aedt file load time 0.04693317413330078
PyAEDT INFO: PostProcessor class has been initialized! Elapsed time: 0m 0sec
PyAEDT INFO: PostProcessor class has been initialized! Elapsed time: 0m 0sec
PyAEDT INFO: Post class has been initialized! Elapsed time: 0m 0sec
PyAEDT INFO: Modeler class has been initialized! Elapsed time: 0m 0sec
PyAEDT INFO: Solution Correctly loaded. Elapsed time: 0m 1sec
PyAEDT INFO: Solution Correctly parsed. Elapsed time: 0m 0sec
PyAEDT INFO: Exporting geometry...
PyAEDT INFO: Parsing design objects. This operation can take time
PyAEDT INFO: Refreshing bodies from Object Info
PyAEDT INFO: Bodies Info Refreshed Elapsed time: 0m 0sec
PyAEDT INFO: 3D Modeler objects parsed. Elapsed time: 0m 0sec
PyAEDT INFO: Solution Correctly loaded. Elapsed time: 0m 0sec
PyAEDT INFO: Solution Correctly parsed. Elapsed time: 0m 0sec
PyAEDT INFO: Desktop has been released.

INFO - AEDT is released.

Save and release AEDT#

[29]:

toolkit_api.release_aedt(True, True)

PyAEDT INFO: Python version 3.12.10 (tags/v3.12.10:0cc8128, Apr  8 2025, 12:21:36) [MSC v.1943 64 bit (AMD64)].
PyAEDT INFO: PyAEDT version 0.26.1.
PyAEDT INFO: Initializing Desktop session.
PyAEDT INFO: AEDT version 2026.1.
PyAEDT INFO: AEDT installation Path C:\Program Files\ANSYS Inc\v261\AnsysEM
PyAEDT INFO: Connected to AEDT gRPC session on port 57597.
PyAEDT INFO: Desktop has been released and closed.

INFO - AEDT is released.

[29]:

True

Load RCS data#

[30]:

rcs_data_vv = MonostaticRCSData(rcs_metadata_vv)

Load RCS plotter#

[31]:

rcs_data_vv_plotter = MonostaticRCSPlotter(rcs_data_vv)

Set ISAR 2D#

[32]:

rcs_data_vv_plotter.plot_isar_2d()

[32]:

Class: ansys.aedt.core.visualization.plot.matplotlib.ReportPlotter
../_images/examples_import_cad_60_1.png

Plot ISAR#

[33]:

rcs_data_vv_plotter.clear_scene()
rcs_data_vv_plotter.add_isar_2d()
rcs_data_vv_plotter.plot_scene()

[34]:

# Wait 3 seconds to allow AEDT to shut down before cleaning the temporary directory.
time.sleep(3)

Clean temporary directory#

[35]:

temp_dir.cleanup()
