Generate an ISAR 2D plot from RCS metadata#

This example demonstrates how to use the ToolkitBackend class. It initiates AEDT through PyAEDT, opens an HFSS design, and proceeds to get the antenna data.

Perform required imports#

[1]:

from ansys.aedt.toolkits.radar_explorer.rcs_visualization import MonostaticRCSData
from ansys.aedt.toolkits.radar_explorer.rcs_visualization import MonostaticRCSPlotter

Get metadata#

[2]:

metadata_vv = r"..\example_models\isar_2d_data\HH_Spheres_ISAR2D.json"

Load RCS#

[3]:

rcs_data_vv = MonostaticRCSData(metadata_vv)

Get ISAR 2D data#

[4]:

rcs_data_vv.upsample_azimuth = 201
data = rcs_data_vv.isar_2d

Load RCS plotter#

[5]:

rcs_data_vv_plotter = MonostaticRCSPlotter(rcs_data_vv)

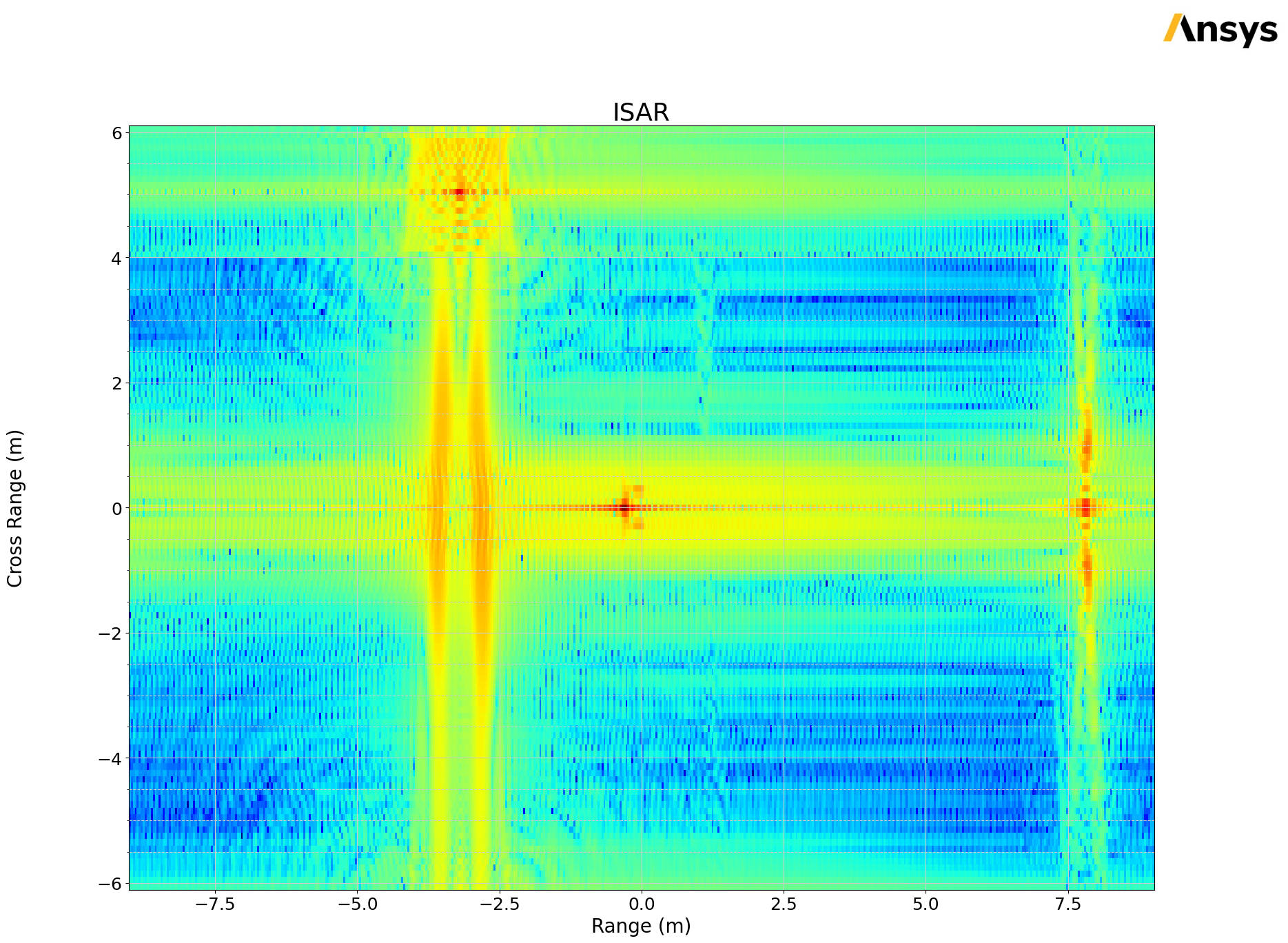

Plot 2D ISAR data#

[6]:

rcs_data_vv_plotter.plot_isar_2d()

[6]:

Class: ansys.aedt.core.visualization.plot.matplotlib.ReportPlotter

../../_images/examples_post_isar_2d_13_1.png

Plot 2D ISAR settings#

[7]:

rcs_data_vv_plotter.add_isar_2d_settings(size_range=18, size_cross_range=12)
rcs_data_vv_plotter.plot_scene()

Plot ISAR#

[8]:

rcs_data_vv_plotter.clear_scene()
rcs_data_vv_plotter.add_isar_2d()
rcs_data_vv_plotter.plot_scene()

Plot ISAR 2D with relief#

[9]:

rcs_data_vv_plotter.clear_scene()
rcs_data_vv_plotter.add_isar_2d(plot_type="Relief")
rcs_data_vv_plotter.plot_scene()

Plot ISAR 2D with projection#

rcs_data_vv_plotter.clear_scene() rcs_data_vv_plotter.add_isar_2d() rcs_data_vv_plotter.add_isar_2d(plot_type=”Projection”) rcs_data_vv_plotter.plot_scene()
